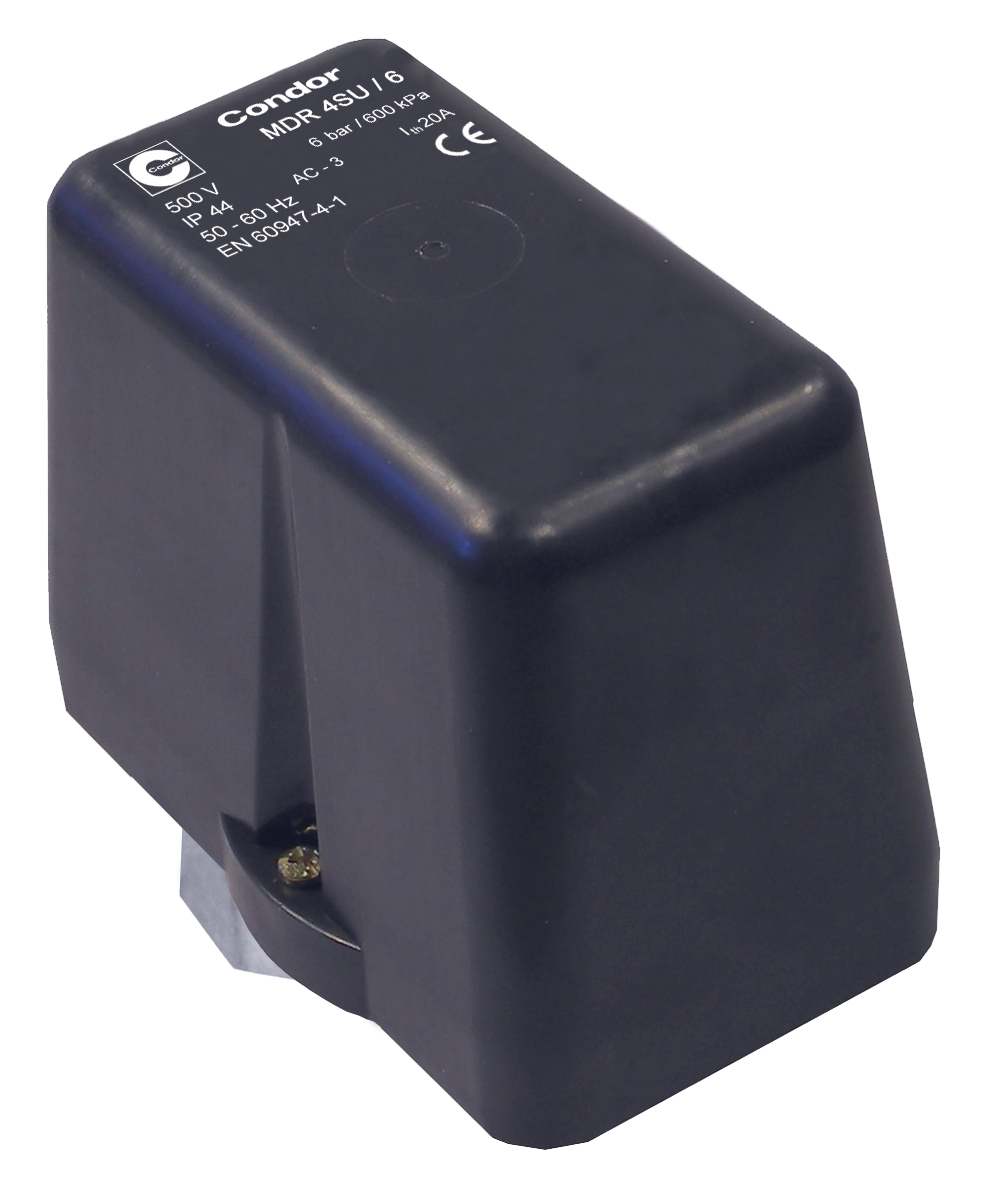

Condor Pressure Switch MDR 4/6 SU 1,50-6 bar 1/2"
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 4 SU/6 bar 212706
Three-phase version
Switching capacity 4.0 kW
Pressure range 1.5 - 6.00 bar
With reverse switching function
3-pole (NO contact)
In accordance with EN 60947
Pressure switch type: DAA BFCA 040A060 XAA XXX see under Documents.
Further information see under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 4.0 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (NO contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 420 |
| Pressure range (bar) | 1.5 - 6 |
| Model range - Pressure switch | MDR 4 SU |
| On / Off switch button | No |
