Condor Pressure Switch MDR 43, 2,5-6 bar G 1/2"
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor control pressure switch MDR 43/6 bar 212799
1 NO contact + 1 NC contact
Pressure range 2.50 - 6.00 bar
Transparent cover
Switch-on pressure is smallest pressure difference
Switch-off pressure is preset
In accordance with EN 60947
Pressure switch type: DAA BAAA xxxA040 XAA XXX see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
Application areas:
Compressed air technology
Water technology
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 1,1 |
| Max. media temperature (°C) | 80 |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (1 NO contact + 1 NC contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Pressure range (bar) | 2.5 - 6 |
| Model range - Pressure switch | MDR 43 |
Similar Products
| Product | Price | ||
|---|---|---|---|

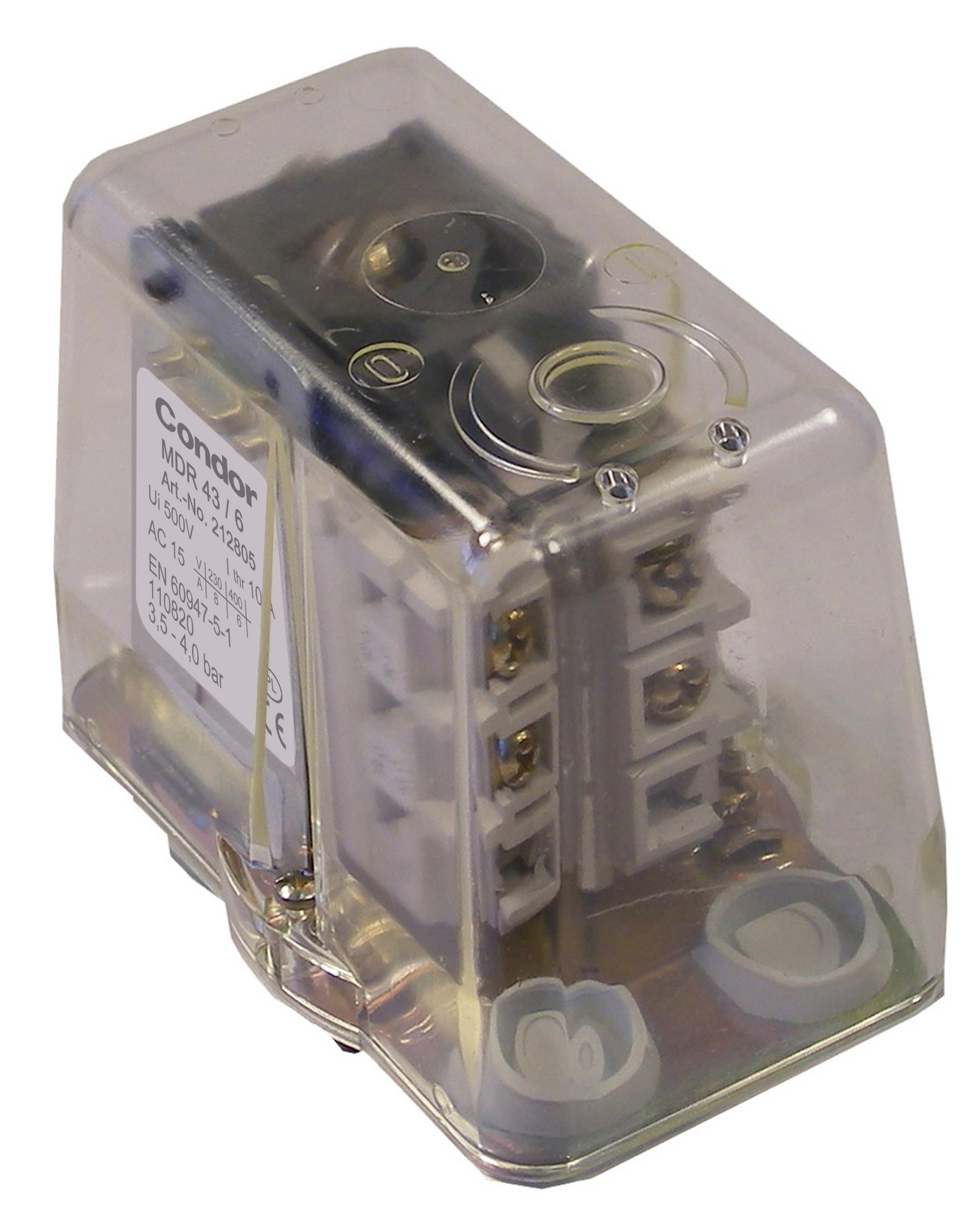

![[212805] Condor Pressure Switch MDR 43, 2,5-6 bar G 1/4"](/web/image/product.template/226394/image_128/%5B212805%5D%20Condor%20Pressure%20Switch%20MDR%2043%2C%202%2C5-6%20bar%20G%201-4%22?unique=d4441e6)
|
