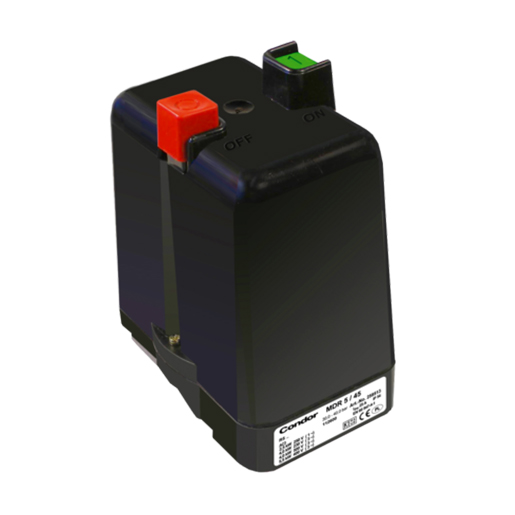

Condor Pressure Switch MDR 5/16-K 2,5-16 bar G 1/2" Alu
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 5/16 bar EA 212980
Please note that an overcurrent relay is required for commissioning, see under "Accessories", otherwise the automatic on/off function will not work!
Three-phase version
Switching capacity 5.5
Pressure range 2.50 - 16.00 bar
3-pole (NC contact)
In accordance with EN 60947
The manufacturer reserves the right to make technical changes!
Pressure switch type: HAA AAAA 130A160 XXX XXX see further information under Documents.
Required relief valves, cable glands, covers for retrofitting see under "Accessories".
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 54 |
| Motor switching capacity (kW) | 5.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 860 |
| Pressure range (bar) | 2.5 - 16 |
| Model range - Pressure switch | MDR 5 |
| On / Off switch button | Yes |
