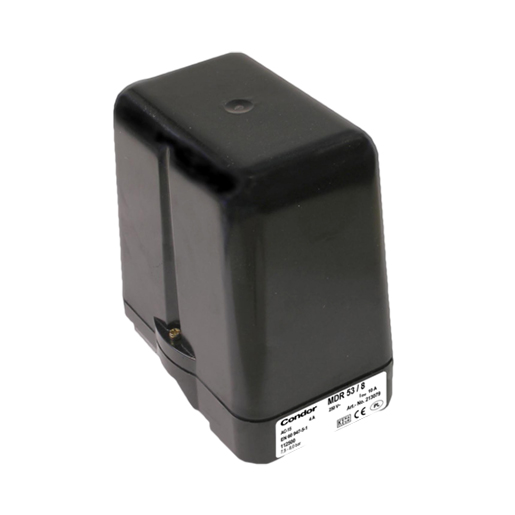

Condor Pressure Switch MDR 53/16 6-16 bar G 1/2"
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor control pressure switch MDR 53/16 bar 213086
1 changeover contact - SPDT
Pressure range 6.00 - 16.00 bar
Large connection space
High switching accuracy
Pressure adjustment possible without tools
According to EN 60947
CSA approval optional
Pressure switch type: HAA BAAA xxxA160 XAA XXX see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
Application areas:Compressed air technology
Water technology
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 54 |
| Motor switching capacity (kW) | 0.55 kW |
| Max. media temperature (°C) | 80 |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | Changer |
| Rated frequency | 50 Hz / 60 Hz |
| Pressure range (bar) | 6 - 16 |
| Model range - Pressure switch | MDR 53 |
