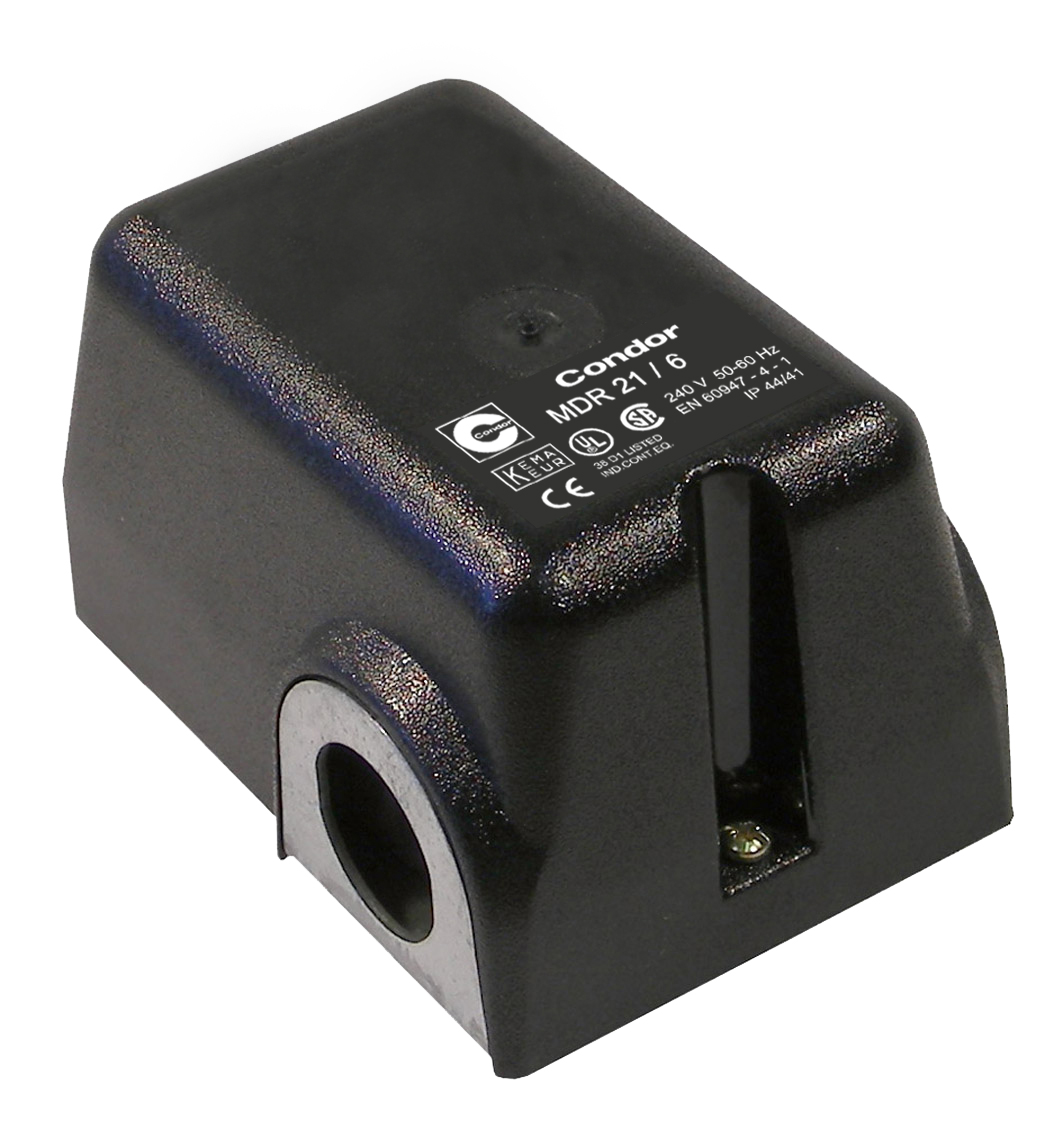

Condor Pressure Switch MDR 21 1,5-7 bar F4 1/4"
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 21/6 bar 226901
AC version
Switching capacity 4.0 kW / 4 HP
max. breaking pressure 12 bar / 175 psi
2-pole (NC contact)
in accordance with EN 60947
UL / CSA approval
Pressure switch type: DEA BACA 015A030 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting, corresponding sealing plugs for connections not required see under "Accessories".
| Thread / connection | F4 1/4" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 2.2 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 320 |
| Pressure range (bar) | 1.5 - 7 |
| Model range - Pressure switch | MDR 21 |
| On / Off switch button | No |
