Condor Control Pressure Switch MDR-F 8H-S

117.45 € 117.45 EUR 117.45 € VAT Included

98.70 € VAT Included

Brand

This combination does not exist.

The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology

Product no. :

253549

Category :

Condor MDR F

Weight :

0.46 kg

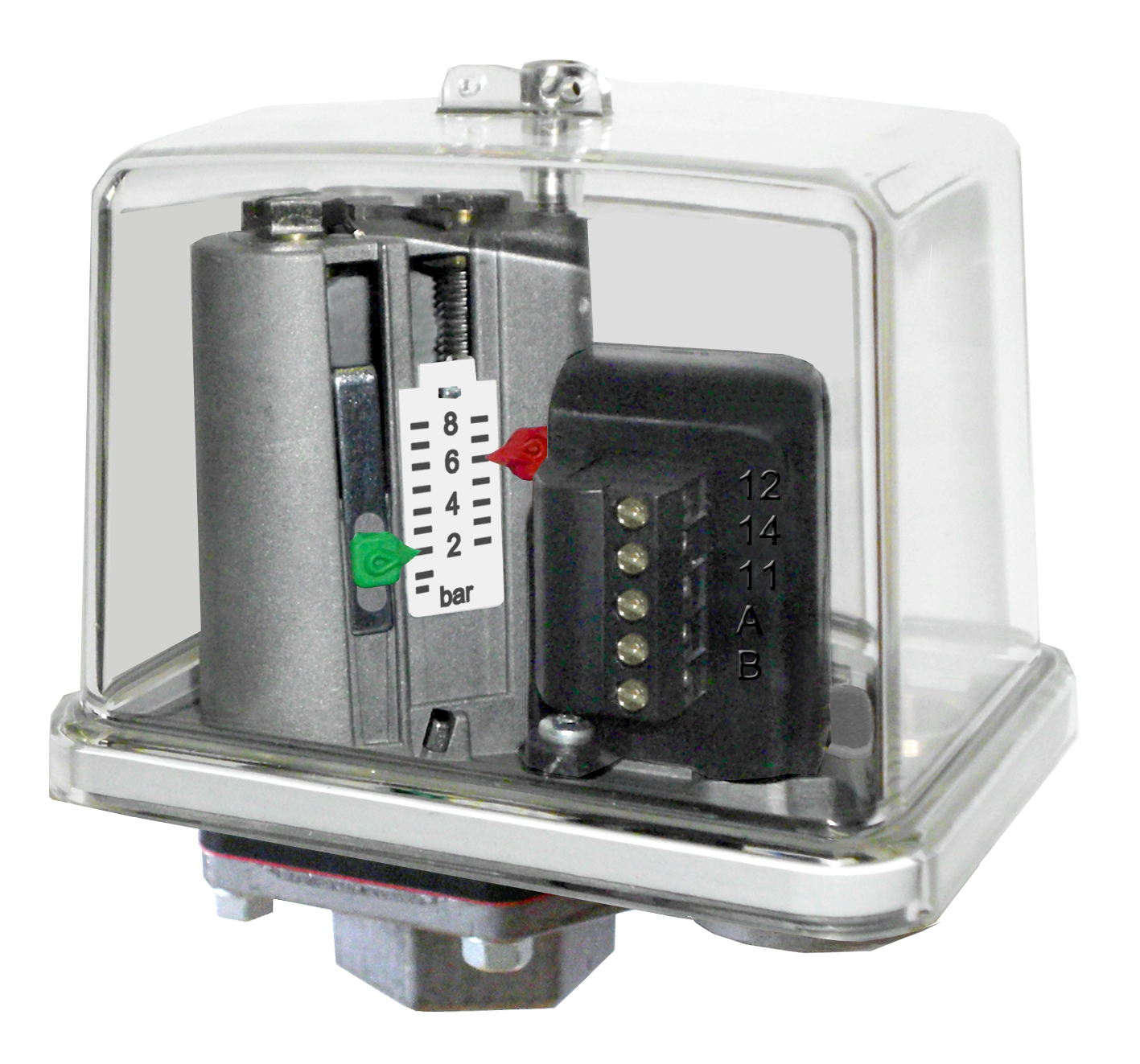

Condor control pressure switch MDR-F 8H-S 253549

1 changeover contact
Pressure range 0.5 - 8.00 bar
Pressure switch with NBR diaphragm (Perbunan)
Die-cast aluminum flange for oil, water and air etc.
Industrial screw terminal
Pressure connection: G 3/8" female thread
With scale for easy adjustment
Cable glands stepped/choke nipple
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
According to EN 60947

Pressure switch type: HAA SAA A 020A060 see under Documents

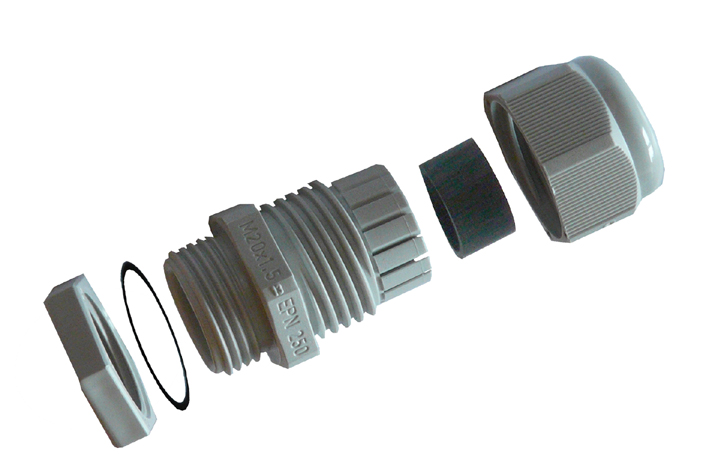

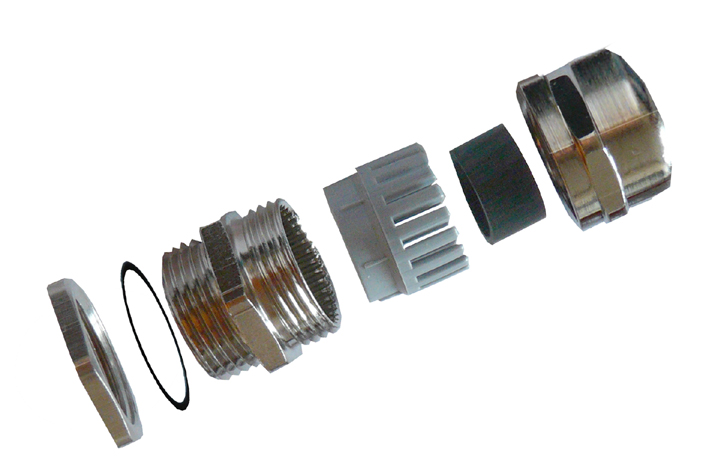

For required cable glands for retrofitting and cover see under "Accessories".

Medium	Air, water, oil
Current version	Alternating current
Type of construction	Electro-mechanical
Tension	≤ 250 V
Contact function	Changer
Rated frequency	50 Hz / 60 Hz
Max. media temperature (°C)	70°C
Motor switching capacity (kW)	0.55 kW
Protection class	IP 54, IP 65
Thread / connection	G 3/8" die-cast aluminum
Switch-on pressure adjustable (bar)	0,2 .... 7,5
Switch-off pressure adjustable (bar)	0,5 .... 8
small pressure difference (bar)	0,3 .... 0,5
Weight (in g)	460
Model range - Pressure switch	MDR F
