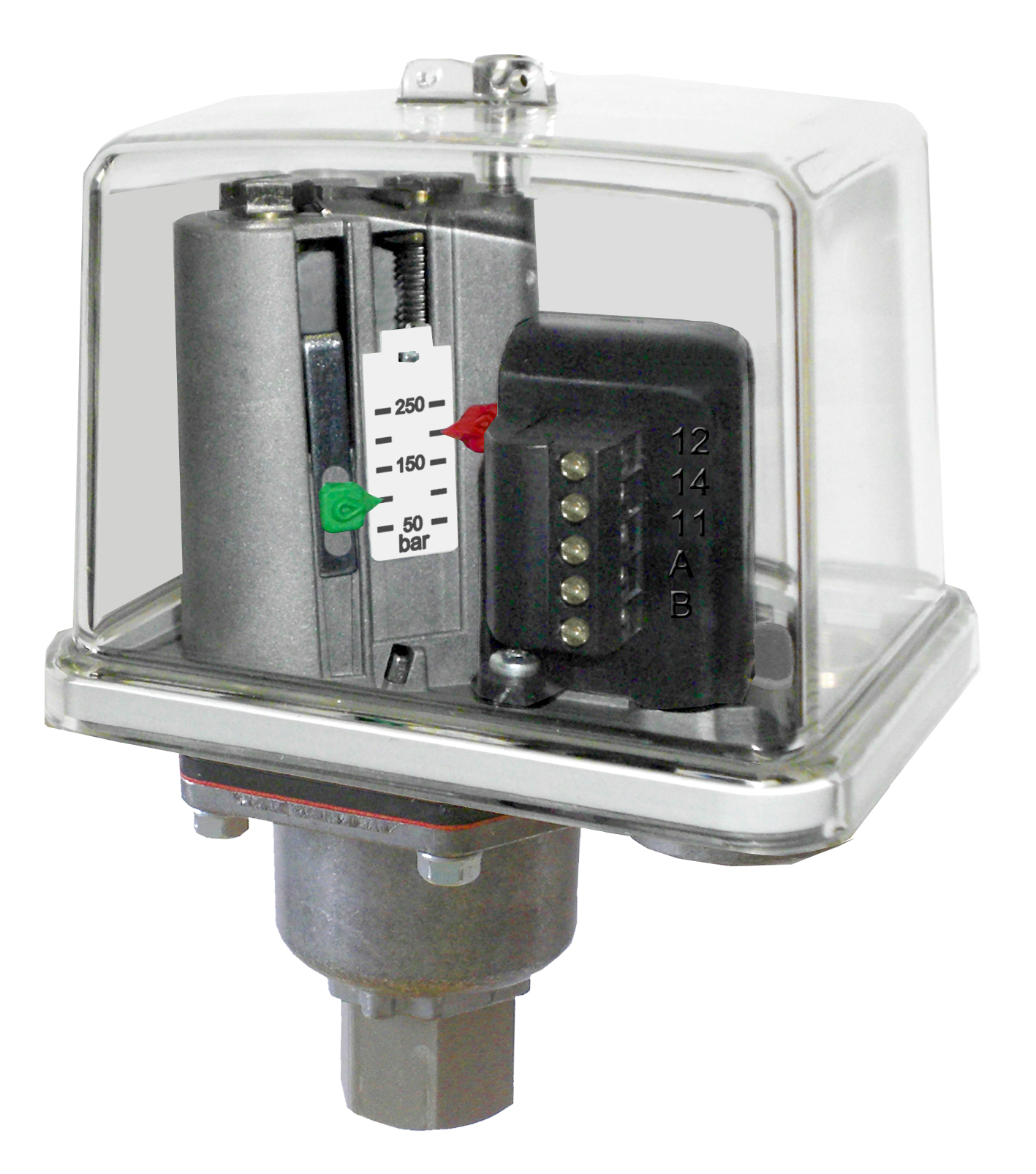

Condor Control Pressure Switch MDR-F 250HHG-S

320.23 € 320.23 EUR 320.23 € VAT Included

269.10 € VAT Included

Brand

This combination does not exist.

The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology

Product no. :

253815

Category :

Condor MDR F

Weight :

0.57 kg

Condor control pressure switch MDR-F 250HHG-S 253815

1 changeover contact
Pressure range 26.00 - 250.00 bar
Gold-plated contacts
High-pressure switch with plastic piston as pressure transducer element with stainless steel connection
Industrial screw terminal
Pressure connection: G 3/8" female thread
With scale for easy adjustment
Cable glands stepped/choke nipple
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
According to EN 60947

Pressure switch type: HHA SBA A 100F200 see under Documents.
For further information see under Documents.

For the cable glands required for retrofitting and the cover, see "Accessories".

Medium	Air, water, oil
Current version	Alternating current
Type of construction	Electro-mechanical
Tension	≤ 250 V
Contact function	Changer
Rated frequency	50 Hz / 60 Hz
Max. media temperature (°C)	70
Motor switching capacity (kW)	0.55 kW
Protection class	IP 54, IP 65
Thread / connection	G 3/8" female thread (main pressure connection 3/8"; plastic piston as pressure transducer element and stainless steel connection + throttle)
Switch-on pressure adjustable (bar)	14 ... 226
Switch-off pressure adjustable (bar)	26 ... 250
small pressure difference (bar)	12 24
Weight (in g)	570
Model range - Pressure switch	MDR F
