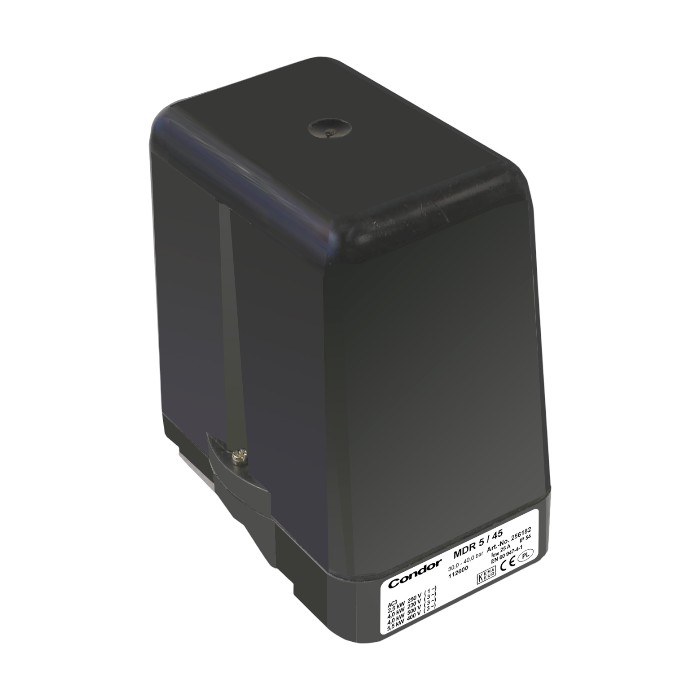

Condor Pressure Switch MDR 5/45 13-45 bar G 1/2" Alu
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 5/45 bar 256182
Three-phase version
Switching capacity 5.5
Pressure range 13.00 - 45.00 bar
3-pole (NC contact)
In accordance with EN 60947
The manufacturer reserves the right to make technical changes!
Only the EV5-H relief valve can be used for this pressure switch (see accessories)!
Pressure switch type: KAA BAAA 300 A400 XXX XXSee further information under Documents.
For required relief valves, cable glands, covers for retrofitting, see "Accessories".
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 54 |
| Motor switching capacity (kW) | 5.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 820 |
| Pressure range (bar) | 13 - 45 |
| Model range - Pressure switch | MDR 5 |
| On / Off switch button | No |
Similar Products
| Product | Price | ||
|---|---|---|---|

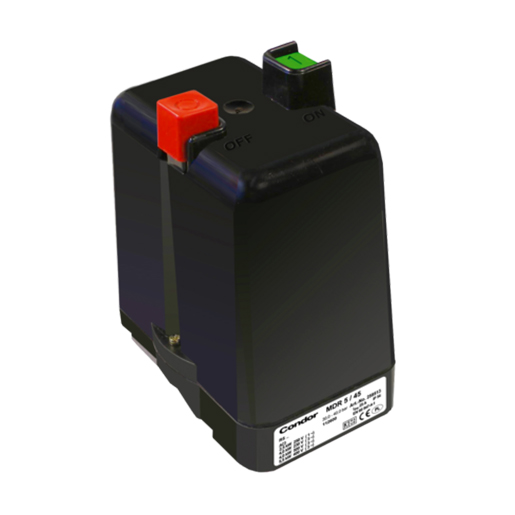

![[258513] Condor Pressure Switch MDR 5/45-K 13-45 bar G 1/2" Alu](/web/image/product.template/218175/image_128/%5B258513%5D%20Condor%20Pressure%20Switch%20MDR%205-45-K%2013-45%20bar%20G%201-2%22%20Alu?unique=d4441e6)
|
