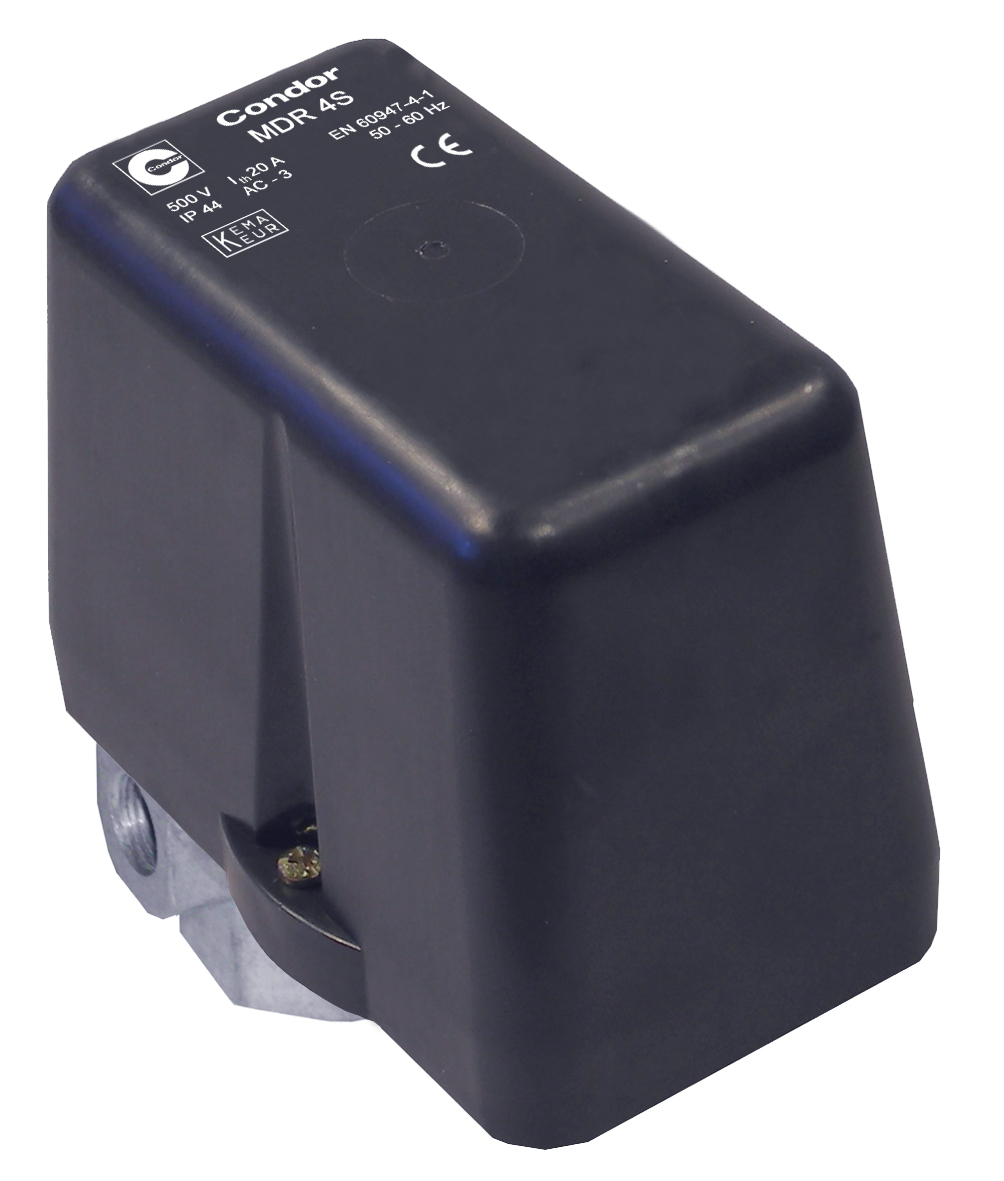

Condor Pressure Switch MDR 4 S/6 1,5-6 bar F4 3/8“ Alu
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 4 S/6 bar 258001
Three-phase version
Switching capacity 5.5 kW
Pressure range 1.5 - 6.00 bar
3-pole (NC contact)
According to EN 60947
4-way flange
Pressure switch type: DFA BFAA 040A060 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting, corresponding sealing plugs for connections not required see under "Accessories".
| Thread / connection | F4 3/8" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 5.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 460 |
| Pressure range (bar) | 1.5 - 6 |
| Model range - Pressure switch | MDR 4 S |
| On / Off switch button | No |
