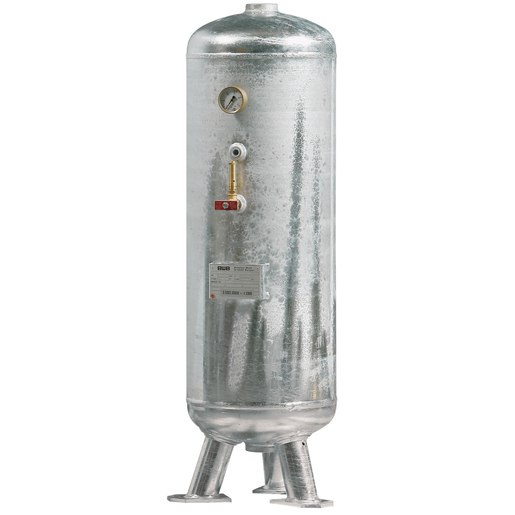

KAESER compressed air receiver 90/11 vertical version
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER compressed air tanks
Compressed air tank - upright version
Rely on KAESER air reservoirs for economy and safety. In addition to their high-quality workmanship, they are characterized by excellent corrosion protection. Plastic protective caps on all connection nozzles ensure optimum protection during transportation to the customer. Thanks to large maintenance openings, cleaning, maintenance and tank inspections are effortless and uncomplicated.
Inspection intervals of up to five years
Optimum corrosion protection (hot-dip galvanized)
Excellent corrosion protection
Easily accessible and generously dimensioned maintenance openings
Note:
The tank is supplied without fitting set and pressure gauge set.
We recommend ordering these at the same time - see under accessories
| Design | standing |
| Volume of compressed air tank (litres) | 90 |
| Max. Overpressure (bar) | 11 |
| Diameter (mm) | 350 |
| Container height (mm) | 1160 |
| Weight (kg) | 33 |
| Compressed air inlet connection | G ½ rear |
| Compressed air outlet connection | G ½ rear |
| Safety valve connection | G ⅜" |
| Manometer set connection | G ¼" |
| Condensate drain connection | G 2" |
| Container acceptance | DIRECTIVE 2014/29/EU |
| Maintenance opening according to AD2000 | - |
| Min. operating temperature (°C) | -10 |
| Max. Operating temperature (°C) | +80 |
| Surface coating | galvanized |

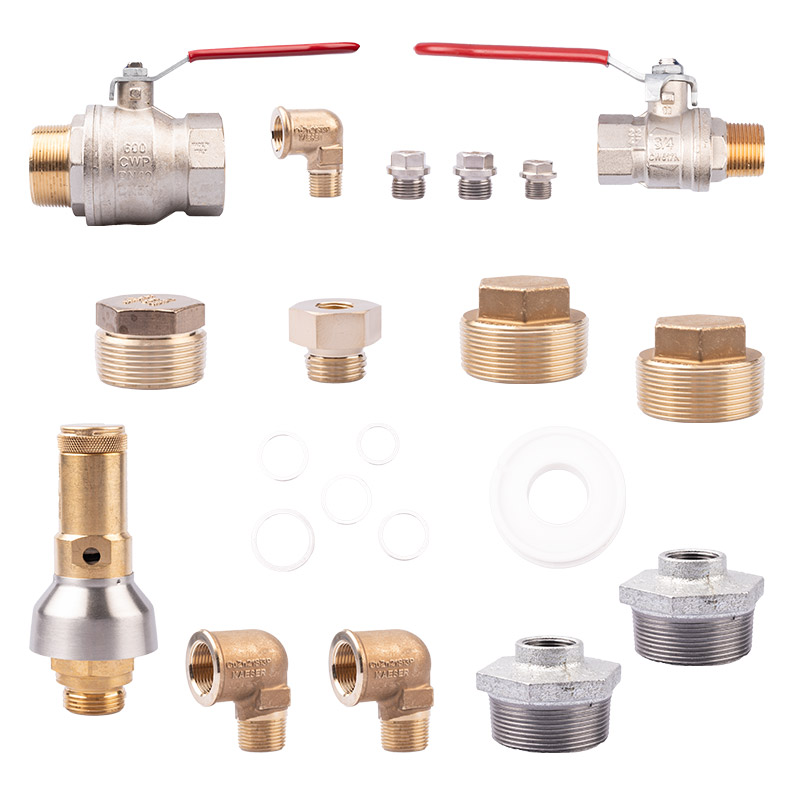

![[8.4400.2] KAESER fitting set for air receiver 90/11 vertical version](/web/image/product.template/257312/image_128/%5B8.4400.2%5D%20KAESER%20fitting%20set%20for%20air%20receiver%2090-11%20vertical%20version?unique=d4441e6)
