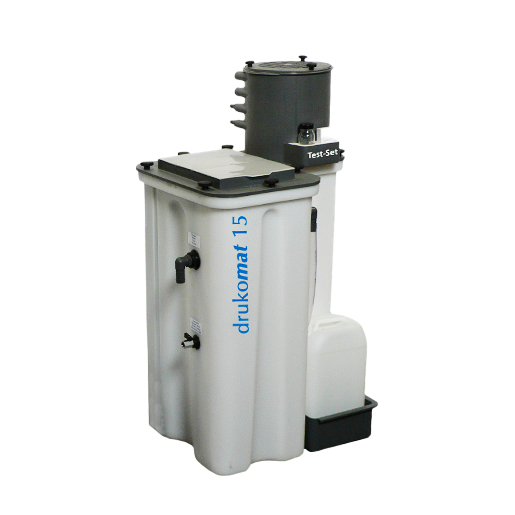

Wortmann Oil-water-seperators model drukomat 15
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment
Wortmann Drukomat 15 oil water separator 3003, incl. a filter set.
The Drukomat 15 reliably de-oils the condensate produced through a combination of deflection and settling chamber, as well as a series connection of coalescence and activated carbon filters directly at the point of origin.
The treated condensate can be discharged directly into the sewer system as purified water.
Filtration:
Pre-filter: 1 x 0.3
Water side: 1 x 3.8 kg
Air side: 1 x 1.5 kg
For further technical data, see "Downloads" below.
| Max. Compressor capacity (m³/min) | 15 |
| Container volume (litres) | 160 |
| Height (mm) | 1.160 |
| Width (mm) | 620 |
| Depth (mm) | 520 |
| Condensate inlet connection | 4x 1/2" thread with hose nozzle |
| Water drain connection | 1" thread with hose nozzle |
| Oil drain connection | 1" thread with hose nozzle |
| Pre-filter (kg) | 1x 0,3 |
| Filtering activated carbon water (kg) | 1x 3,8 |
| Activated carbon air filtration (kg) | 1x 1,5 |
