AIRpipe flexible stainless steel tube, 1.380 metres, DN50, 30°
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe Flexible stainless steel hose, 1,380 meters, DN50, 30° - Compressed air piping system

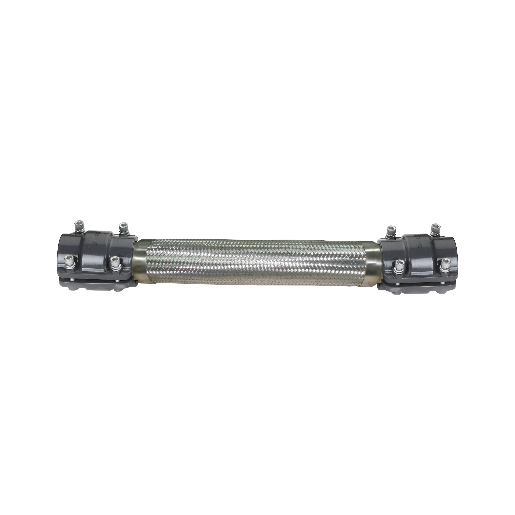

The AIRpipe flexible stainless steel hose, 1,380 meters, DN50, 30° is a flexible stainless steel compressed air hose for the AIRpipe system. Vibration-damping, resistant to mineral oils and compressor lubricants. For compressor connections and for bypassing obstacles.
Technical data
- Nominal diameter: DN50
- Material: Stainless steel corrugated hose - corrosion-resistant, pressure-resistant, oil-resistant
- Flexibility: Compensation of vibrations, thermal expansions and misalignments
- Connection: Compatible with AIRpipe Quick-Connect fittings
- Operating pressure: Up to 15 bar (-20°C to +80°C)
Field of application
Flexible connection to the compressor, air dryer or air filter outlet. Vibration damping and bypassing of obstacles in the compressed air line.
| DN | 50 |
