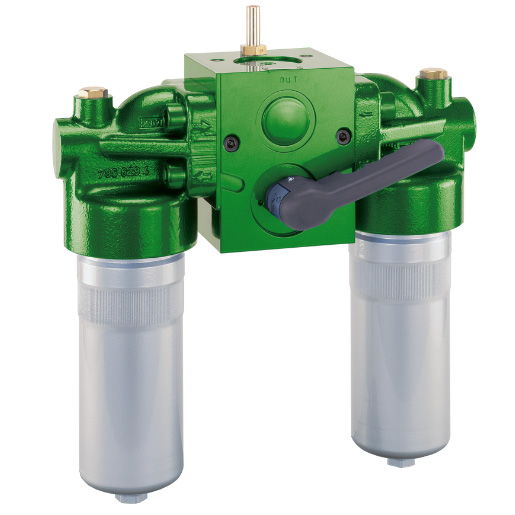

Filtration Group High pressure double switching filter Pi 47040-010

6,600.93 € 6600.93 EUR 6,600.93 € VAT Included

5,547.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

70304333

Category :

Filtration Group Duplex Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) High-pressure duplex filter Pi 47040-010 / 70304333

Low space requirement due to compact design

Modular system for optimum filter selection

Thread design

Hole for maintenance indicator

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Ergonomic changeover lever with lever lock and locking mechanism

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

Important note:
We supply the Mahle Pi 474-1 high-pressure duplex filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 11/2
Operating temperature	-10°C bis +120°C
Max. Operating pressure (bar)	315
Nominal size	400
Seal material	NBR/PTFE
Filter housing material	Steel
Filter head material	Steel

FG-Datenblatt_Pi4700_NG40-400_de

Download
