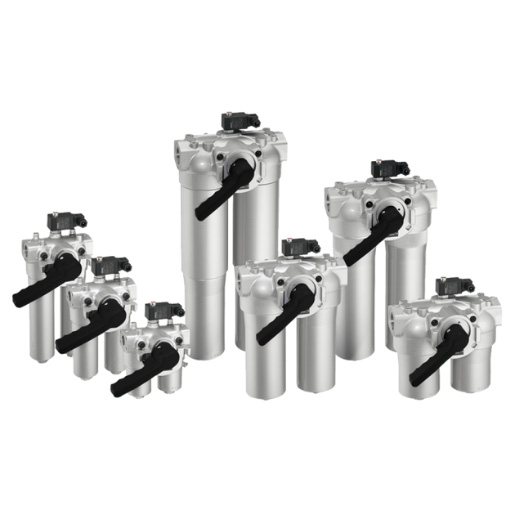

Filtration Group Low pressure double switching filter Pi 211063-068
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 211063-068 / 70316222
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle low-pressure duplex filter Pi 21163-68 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Flange ISO 6162-1 |
| Connection size | DN 64 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | mechanical |
| Operating temperature | -10°C bis +120°C |
| Max. Operating pressure (bar) | 40 |
| Nominal size | 630 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
