Filtration Group Low pressure double switching filter Pi 211100-058

Price:

8,456.14 €

English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Low pressure double switching filter Pi 211100-058

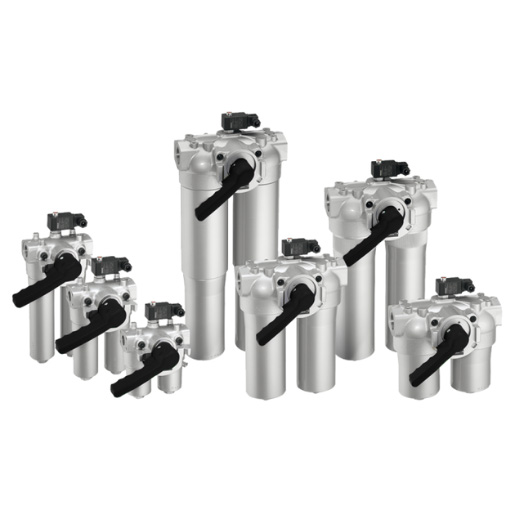

Filtration Group Low pressure double switching filter Pi 211100-068
Filtration Group Low pressure double switching filter Pi 211100-068
8,300.25 € 8,300.25 €
Filtration Group Low pressure double switching filter Pi 211100-057
Filtration Group Low pressure double switching filter Pi 211100-057
8,521.59 € 8,521.59 €

Filtration Group Low pressure double switching filter Pi 211100-058

https://staging-filcom-16.laminfra.de/web/image/product.template/232367/image_1920?unique=d4441e6

8,456.14 € 8456.14 EUR 8,456.14 € VAT Included

7,106.00 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

70316226

Category :

Filtration Group Duplex Filter

Weight :

102.00 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 211100-058 / 70316226

  • Low space requirement due to compact design
  • Flange connection
  • Bypass
  • Visual maintenance indicator
  • Minimal pressure loss due to streamlined design of the components
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • Important note:
    We supply the Mahle Pi 2111-58 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange ISO 6162-1
    Connection size DN 64
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 3,5
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 40
    Nominal size 1000
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
    FG-Datenblatt_Pi2110_NG630_1000_de
