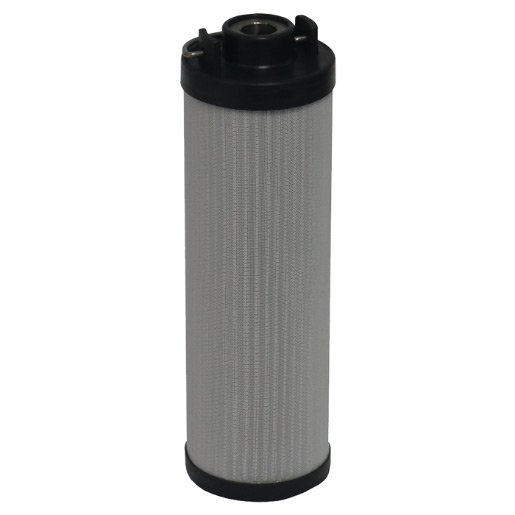

Filtration Group EcoParts Filter element for Hydac Filter 0160R100WHC
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Mounting diameter (mm) | 36 |
| Outer diameter (mm) | 73.1 |
| Bypass valve in the element (bar) | 3 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Plastic end disk PA |
| Filter fineness (micrometres) | 100 |
| Filter material | Wire mesh |
| Height (mm) | 143 |
| Inner diameter (mm) | 34.1 |
| Medium | Hydraulic oil |
| Original manufacturer | Hydac |
| Original manufacturer product number | 0160R100WHC |
| Seal material | NBR |
| Compatible with SF filter | HY 13188 |
