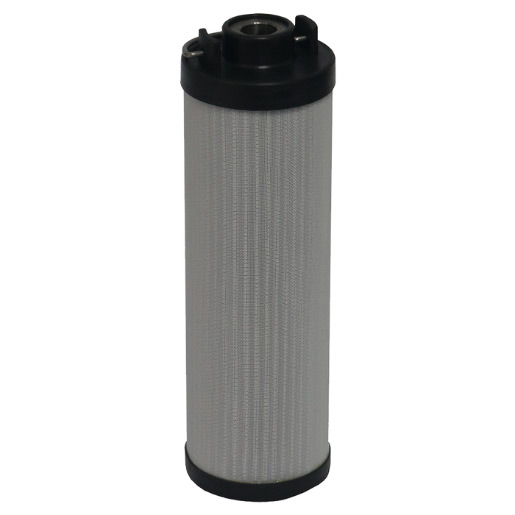

Filtration Group EcoParts Filter element for Hydac Filter 1700R003BN4HC
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Mounting diameter (mm) | 65.5 |
| Outer diameter (mm) | 114 |
| Bypass valve in the element (bar) | 3 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Plastic end disk PA |
| Filter fineness (micrometres) | 3 |
| Filter material | Glass fiber |
| Height (mm) | 792 |
| Inner diameter (mm) | 68.3 |
| Medium | Hydraulic oil |
| Original manufacturer | Hydac |
| Original manufacturer product number | 1700R003BN4HC |
| Seal material | NBR |
| Compatible with SF filter | HY 13498 |
