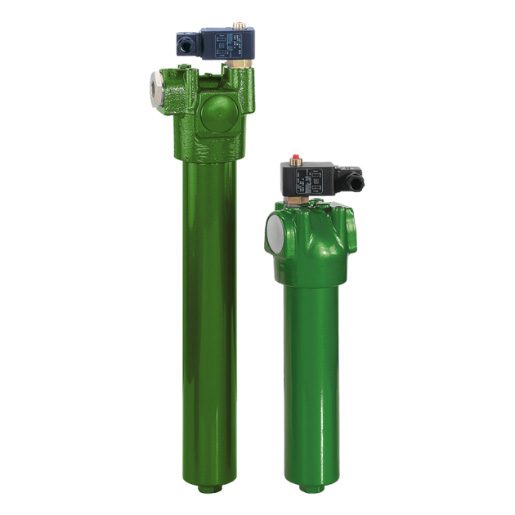

Filtration Group High pressure filter Pi 423040-010 FL

1,118.60 € 1118.6000000000001 EUR 1,118.60 € VAT Included

940.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

70382578

Category :

Filtration Group High Pressure Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 423040-010 FL / 70382578

Low space requirement due to compact design

Modular system for optimum filter selection

Hole for the maintenance indicator

Flange connection

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Filter elements can be removed from the top

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

Important note:
We supply the Mahle Pi 4234-1 FL high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange ISO 6162-2
Seal material	NBR/PTFE/Cu
Contact type Contamination indicator	screwed-in blind plug for VA
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Max. Operating pressure (bar)	315
Connection size	DN 38
Nominal size	400
Filter head material	GGG

FG-Datenblatt_Pi4230_NG160_400_de

Download

Filtration Group High pressure filter Pi 423040-010 FL

Brand

Filtration Group (formerly MAHLE) High-pressure filter Pi 423040-010 FL / 70382578
