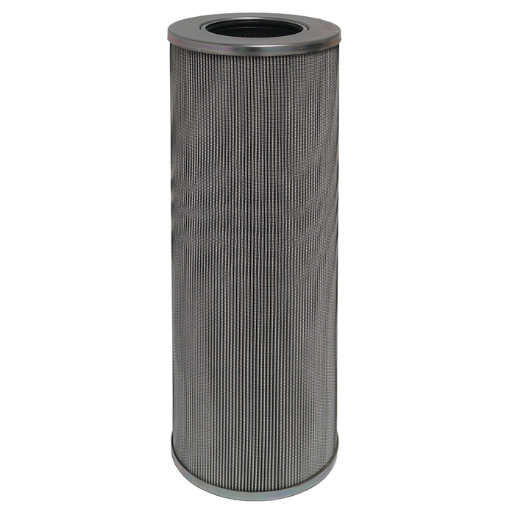

Filtration Group filter element N 0250 DN 3 050
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) EcoParts filter element N 0250 DN 3 050 / 70517824
has the following advantages:
Defined filter performance and cleanliness class
Defined service life
High functionality and safety
High reliability and cost-effectiveness
Certified quality
Tested according to DIN and ISO standards with all current industry approvals
| Mounting diameter (mm) | 40.3 |
| Outer diameter (mm) | 78.5 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 50 |
| Filter material | Wire mesh |
| Height (mm) | 248.5 |
| Inner diameter (mm) | 40.3 |
| Medium | Hydraulic oil |
| Nominal size (l/min) | 250 |
| Original manufacturer | Standard |
| Original manufacturer product number | 0250DN050WHC |
| Seal material | NBR |
