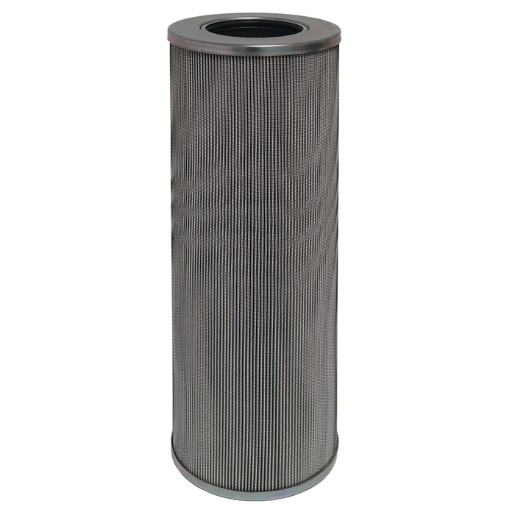

Filtration Group EcoParts Filter element for Filtration Group (ex. MAHLE) Filter Pi 22100 RF PS 6 FKM
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Mounting diameter (mm) | 90.5 |
| Outer diameter (mm) | 160 |
| Differential pressure (bar) | 10 |
| Element type | EcoParts |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 6 |
| Filter material | Glass fiber |
| Height (mm) | 399 |
| Inner diameter (mm) | 90.5 |
| Medium | Hydraulic oil |
| Nominal size (l/min) | 1000 |
| Original manufacturer | Standard |
| Seal material | FKM (FPM) |
