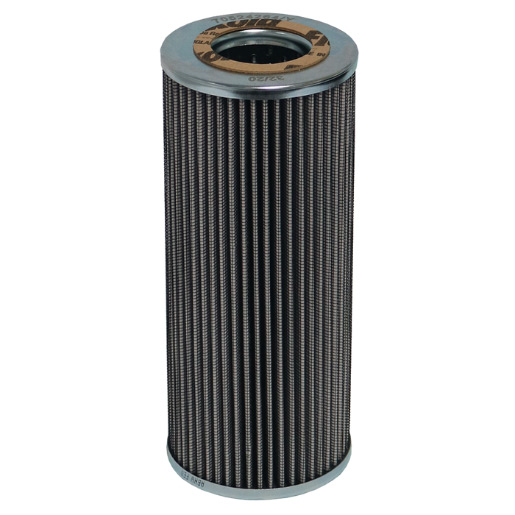

Filtration Group EcoParts Filter element for Argo-Hytos Filter S3.0508-51
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Mounting diameter (mm) | 20.5 |
| Outer diameter (mm) | 45.5 |
| Bypass valve in the element (bar) | 1.5 |
| Element type | EcoParts |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 60 |
| Filter material | Wire mesh |
| Height (mm) | 80 |
| Inner diameter (mm) | 20.5 |
| Medium | Hydraulic oil |
| Original manufacturer | Argo |
| Original manufacturer product number | S3050850 |
| Seal material | NBR |
| Compatible with SF filter | HY 10210 |
