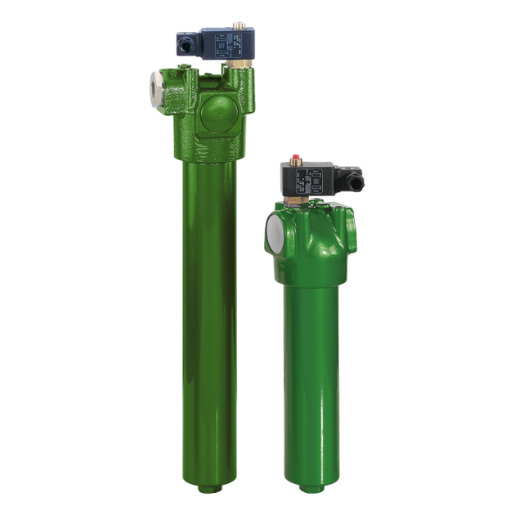

Filtration Group High pressure filter Pi 422025/21-012 / 70535657

809.20 € 809.2 EUR 809.20 € VAT Included

680.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

70535657

Category :

Filtration Group High Pressure Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 422025/21-012 / 70535657

Low space requirement due to compact design

Modular system for optimum filter selection

Bypass

Visual maintenance indicator

Threaded connection

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle high-pressure filter Pi 42225/21-12 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Bypass opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	mechanical
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Filter housing material	Steel
Seal material	NBR/PTFE
Operating temperature	-10°C bis +120°C
Connection type	Thread ISO 228
Nominal size	250
Connection size	G 11/2
Filter head material	GGG
Max. Operating pressure (bar)	400

FG-Datenblatt_Pi422_NG450_de

Download
