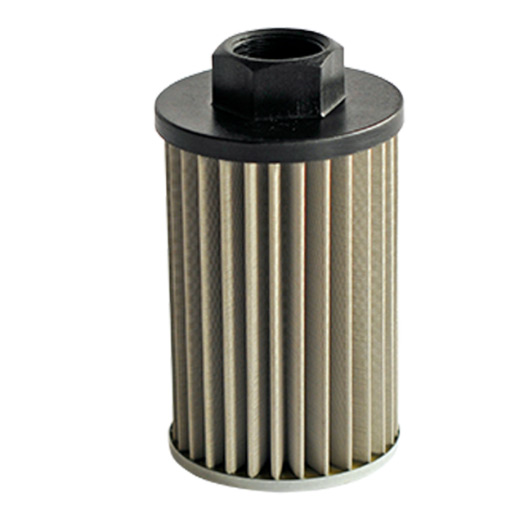

Filtration Group filter element PI 1710/4 DRG 25 G1/2

Filter elements for liquid filters from Filtration Group

Cleanable wire mesh elements from Filtration Group have a sharp separation limit as surface filters and a low dirt holding capacity as depth filters. Filter elements are available in braid, body and linen weave.

Technical specifications:

• Filtration fineness: 10 to 500 µm (absolute)
• Nominal size: 50 to 450 l/min
• Direction of flow: From outside to inside
• Materials: Corrosion-protected end caps and support tubes, chrome VI-free
• Collapse pressure resistance: Up to a maximum of 210 bar
• Temperature application range: -10 °C to +120 °C

Advantages:

• Efficient filtration: Stainless steel wire mesh provides a sharp cut-off point and low flow resistance.
• Cleanable: Manual cleaning or using an ultrasonic bath possible.
• Universally applicable: Suitable for hydraulic and lubricating oil filtration, highly viscous media and cooling lubricants.
• Cost-efficient: Multiple reusable surface filters made of stainless steel wire mesh
• Rugged design: High differential pressure stability and wide temperature application range.
• Environmentally friendly: Chrome VI-free materials reduce the environmental impact.

Application areas:

• Hydraulic systems
• Lubricating oil systems
• Machine tools
• Agricultural and construction machinery
• Power generation
• Ship operating technology
• Stationary hydraulics

This filter element from Filtration Group offers a reliable and cost-effective solution for filtration in various industrial applications. Thanks to its robust design, high differential pressure stability and wide temperature application range, it is particularly versatile.
