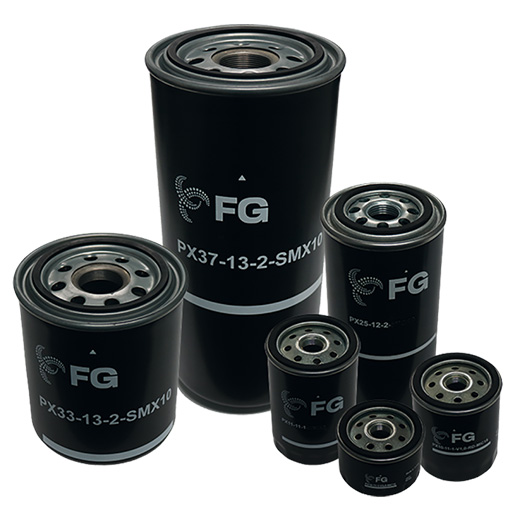

Filtration Group Spin-on cartridge PX PX37-13-2-Smx10
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Screw-on cartridge PX37-13-2-Smx1 (formerly HC 35) / 7541538
Optimum filter selection thanks to modular system
Minimal pressure loss due to streamlined design of the components
High dirt holding capacity and differential pressure stability of the elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
| Outer diameter (mm) | 136.3 |
| Outer seal diameter (mm) | 111 |
| Inner seal diameter (mm) | 100 |
| Filter fineness (micrometres) | 10 |
| Filter material | Glass fiber |
| Thread designation | 11/2-16UN-2B |
| Nominal height (mm) | 308 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 16 |
| Filter material | Glass fiber |
