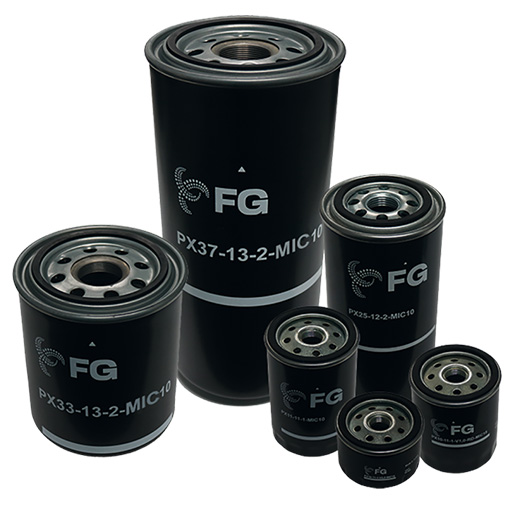

Filtration Group PX22-12-1-V2,5-RD-MIC 10 (ex. Spin-on cartridge OC 0172)
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Spin-on cartridge PX22-12-1-V2.5-RD-MIC 1 (formerly OC 172) / 72456725
- Optimum filter selection thanks to modular system
- Minimal pressure loss due to streamlined design of the components
- High dirt holding capacity and differential pressure stability of the elements
- Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
| Outer diameter (mm) | 93.2 |
| Outer seal diameter (mm) | 72 |
| Inner seal diameter (mm) | 62 |
| Filter fineness (micrometres) | 10 |
| Filter material | Cellulose |
| Thread designation | 1"-12UNF-2B |
| Nominal height (mm) | 142.5 |
| Opening pressure (bar) | 2.5 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 14 |
| Filter material | Zellulose |
