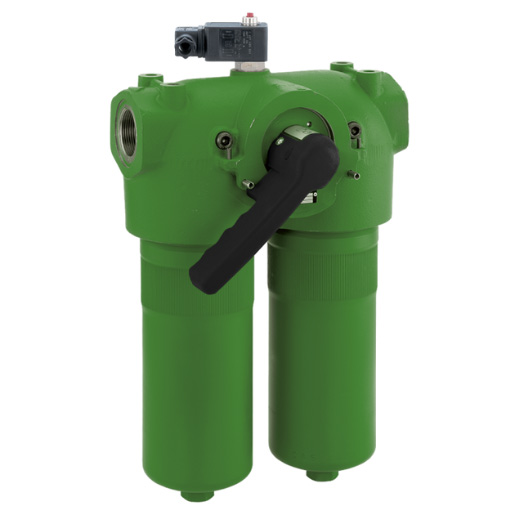

Filtration Group Medium pressure double switching filter Pi 37040-013 incl. PI 23040 DN PS 10
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Connection type | Thread ISO 228 |
| Connection size | G 1 1/2 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | electric |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 7 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 200 |
| Nominal size | 400 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
