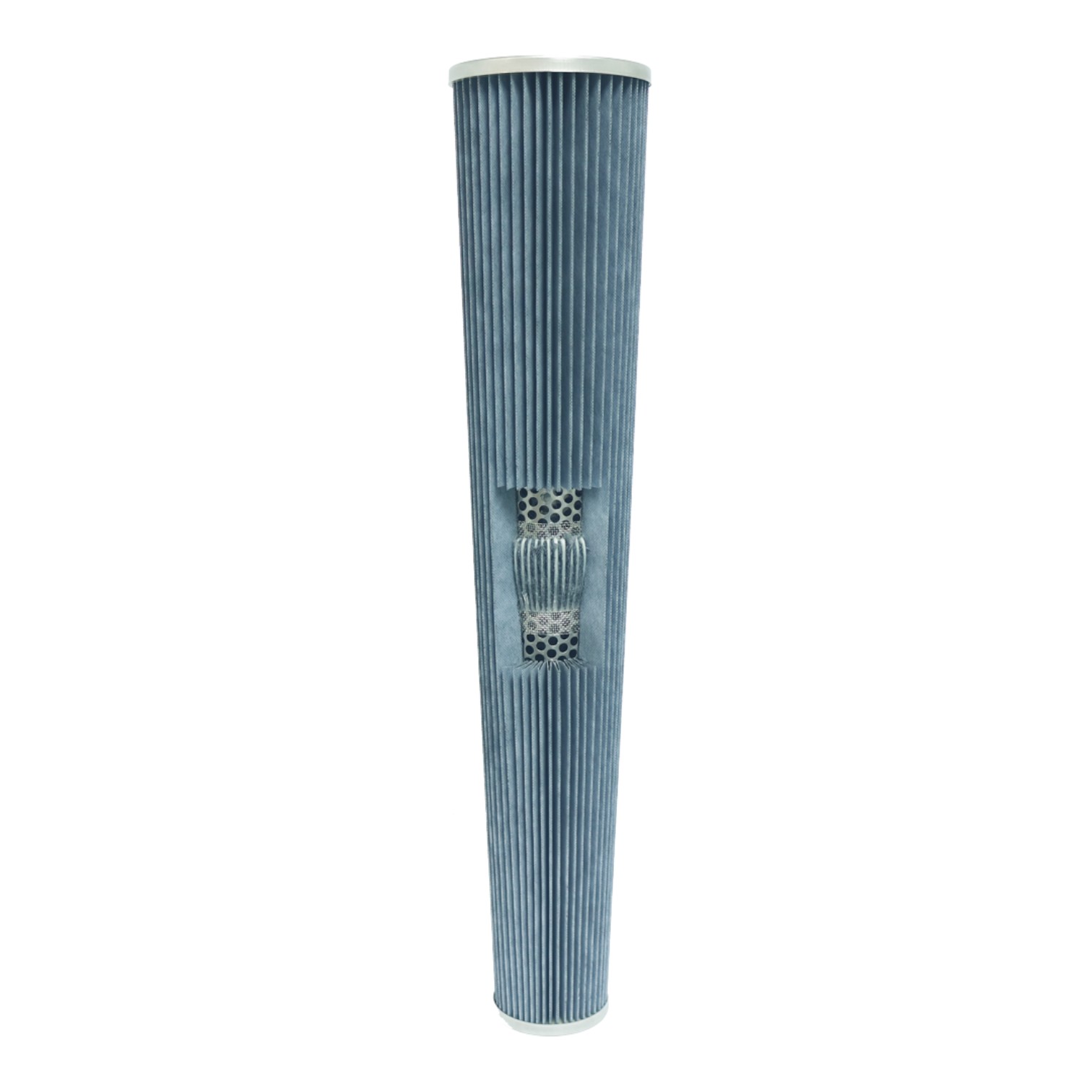

Filtration Group dust filter element 852 904 TI 07/1-1,6 V4A FOOD IFIX
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Seal material | Felt (polyester) |
| Height (mm) | 983 |
| Outer diameter (mm) | 120 |
| Inner diameter (mm) | 68 |
| Filter area (cm²) | 16000 |
| Element shape | Conical |
| Installation | Raw gas side |
| Element fastening | Rd 72 x 5 |
| Filter material | TI 2011/1 |
| Wrinkle stabilisation | Ifix |
| End disc material | Sheet metal end plate |
| Electrostatic discharge capability | yes |
