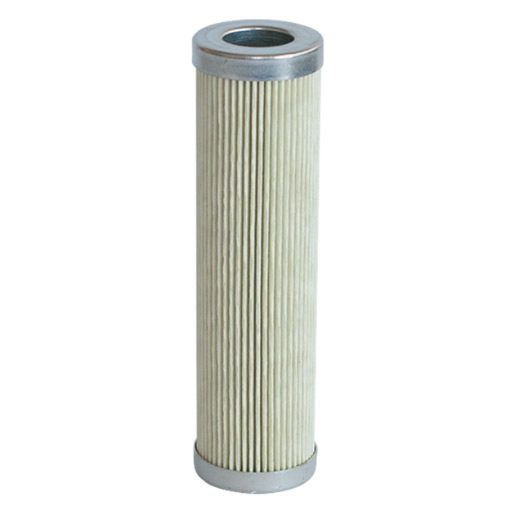

Filtration Group filter element PI 1030 KS MIC 40/ KS 197
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Filter element | FG Standard |
| Nominal size (l/min) | 300 |
| Height (mm) | 255.5 |
| Outer diameter (mm) | 83,20 |
| Inner diameter (mm) | 47.5 |
| Mounting diameter (mm) | 47.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | KS MIC |
| Filter fineness (micrometres) | 40 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | KS MIC |
| Nominal height (mm) | 255,5 |
| Medium | Hydraulic oil |
| Nominal size | 300 |
