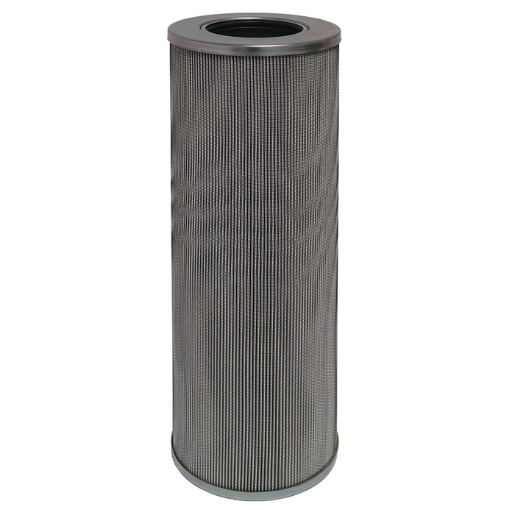

Filtration Group filter element line filter PI 37040 DN DRG 60
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter Element Pi 37040 DN DRG 60 / 76114367
| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 400 |
| Height (mm) | 398.5 |
| Outer diameter (mm) | 78.5 |
| Inner diameter (mm) | 40.3 |
| Mounting diameter (mm) | 40.3 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 60 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Wire mesh |
| Nominal height (mm) | 398,5 |
| Medium | Hydraulic oil |
| Nominal size | 400 |
