Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

76165203

Category :

Filtration Group Low Pressure Filter

Weight :

1.94 kg

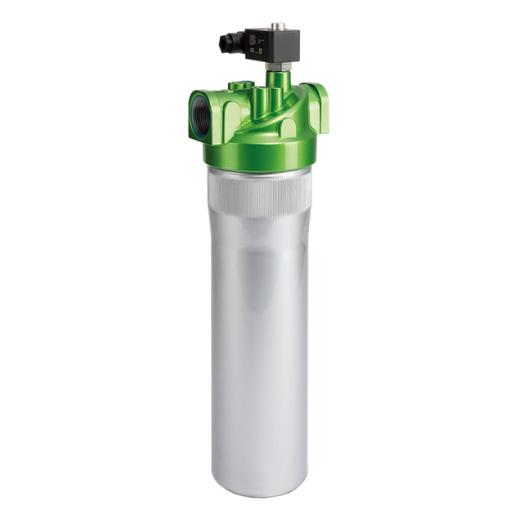

Filtration Group (formerly MAHLE) Low pressure filter Pi 2015-056 / 76165203

Intended for installation in pipes

Modular system for optimum filter selection

Low space requirement due to compact design

Minimal pressure loss due to streamlined design of the components

Version with threaded connections

Bypass

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High differential pressure stability and dirt holding capacity of the elements

Important note:
We supply the Mahle low-pressure filter Pi 215-56 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1 1/4
Operating temperature	-30°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	32
Nominal size	150
Seal material	NBR
Filter housing material	ALU
Filter head material	ALU

FG-Datenblatt_Pi200_NG600_de-1
