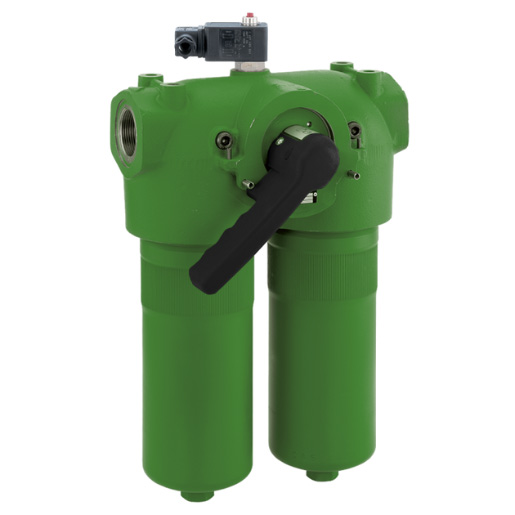

Filtration Group Double switching filter PI 3730-014 FKM
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Connection type | Thread ISO 228 |
| Connection size | G 1 1/2 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | mechanical |
| Operating temperature | -10°C bis +120°C |
| Max. Operating pressure (bar) | 210 |
| Nominal size | 300 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | FKM (FPM) |
| Filter housing material | Steel |
| Filter head material | GGG |
