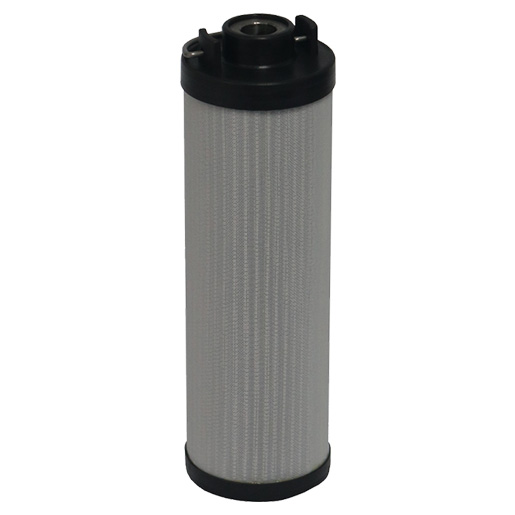

Filtration Group Filter element H0110RN2010
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) EcoParts filter element H 11 RN 2 1 / 76319255
has the following advantages:
| Mounting diameter (mm) | 24 |
| Outer diameter (mm) | 51.5 |
| Bypass valve in the element (bar) | 3.5 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Plastic end disk PA |
| Filter fineness (micrometres) | 10 |
| Height (mm) | 170.2 |
| Inner diameter (mm) | 22.1 |
| Medium | Hydraulic oil |
| Original manufacturer | Hydac |
| Original manufacturer product number | 0110R010BN4HC |
| Seal material | NBR |
| Compatible with SF filter | HY 13170 |
