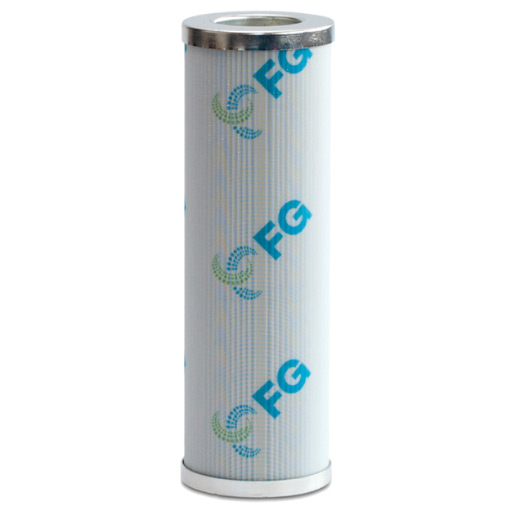

Filtration Group filter element 852 014 PS 3

1,074.57 € 1074.57 EUR 1,074.57 € VAT Included

903.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

76321830

Category :

Filtration Group Filter Elements

Weight :

5.19 kg

Filtration Group (formerly MAHLE) Filter element 852 014 SMX3/PS3 / 76321830

Longer service life than conventional filters

Lower energy consumption due to lower differential pressure for longer

Up to 30% more dirt-holding capacity compared to standard products

Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time

Star-pleated filter element

Corrosion-protected end caps and support tubes, chrome VI free

Flow direction from outside to inside

Temperature application range -10 °C to +120 °C

For DIN elements: Standard seals NBR, other seals on request

Mounting diameter (mm)	106
Outer diameter (mm)	167
Differential pressure (bar)	20
Element type	852 Series
End disc material	Plastic end disk PA
Filter fineness (micrometres)	3
Filter material	Glass fiber
Nominal height (mm)	441
Inner diameter (mm)	85,8
Medium	Hydraulic oil
Nominal size	800
Seal material	NBR

FG-Datenblatt_Filterelemente_de

Download

Filtration Group filter element 852 014 PS 3

Brand

Filtration Group (formerly MAHLE) Filter element 852 014 SMX3/PS3 / 76321830
