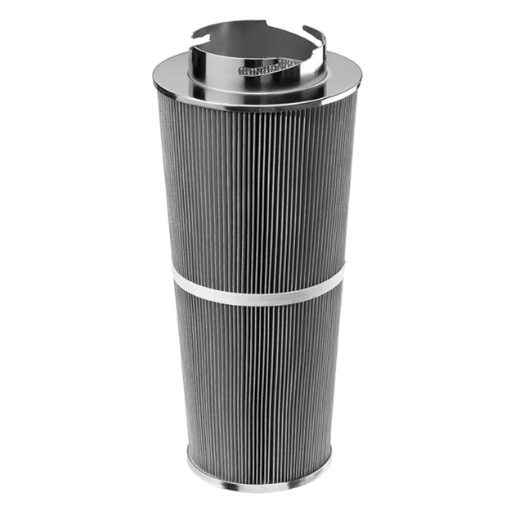

Filtration Group dust filter element 852 030 TI 08-12,5 BAND
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Dust filter element 852 3 TI 8-12.5 Band / 76352751
| Outer diameter (mm) | 328 |
| Electrostatic discharge capability | yes |
| Element fastening | Bayonet |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 08 |
| Height (mm) | 986 |
| Inner diameter (mm) | 216 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Polyurethane (PUR) |
