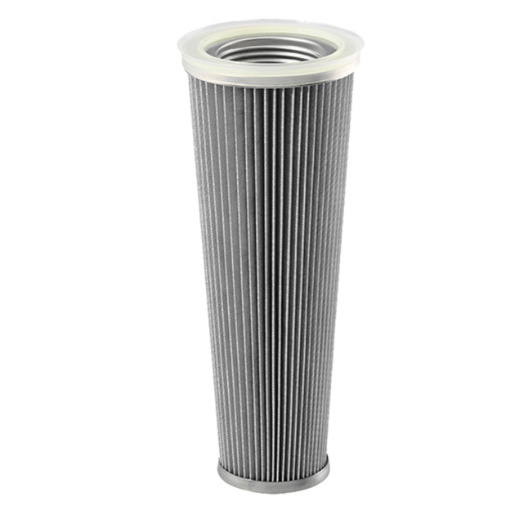

Filtration Group dust filter element 852 902 TI 08-0,5 V4A

Price:

197.54 €

English (US)
  2. Shop
  3. Dedusting Filter Media
  4. Filtration Group dust filter element 852 902 TI 08-0,5 V4A
Filtration Group dust filter element 852 902 TI 19/2-0,5
Filtration Group dust filter element 852 902 TI 19/2-0,5
110.91 € 110.91 €
Filtration Group dust filter element 852 829 TI 15-5
Filtration Group dust filter element 852 829 TI 15-5
247.52 € 247.52 €

Filtration Group dust filter element 852 902 TI 08-0,5 V4A

https://staging-filcom-16.laminfra.de/web/image/product.template/233144/image_1920?unique=d4441e6

197.54 € 197.54 EUR 197.54 € VAT Included

166.00 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

76355309

Category :

Dedusting Filter Media

Weight :

0.50 kg

Filtration Group (formerly MAHLE) Dust filter element 852 902 TI 08-0.5 V4A / 76355309

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life thanks to improved cleaning line

    • Notes:
    - Deviations in the volume flow values are possible due to the type of dust and gas composition.
    - The operating temperature depends on the medium/material.

    Outer diameter (mm) 120
    Electrostatic discharge capability yes
    Element fastening Rd 72 x 5
    Element shape Conical
    Element type 852 Series
    End disc material Sheet metal end plate
    Filter material TI 08
    Height (mm) 300
    Inner diameter (mm) 68
    Installation Raw gas side
    Medium Air
    Seal material Felt (polyester)
    FG-Datenblatt_fg-120nk-de
    Download
