Filtration Group Hydr.-Spin-on filter HC 42
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

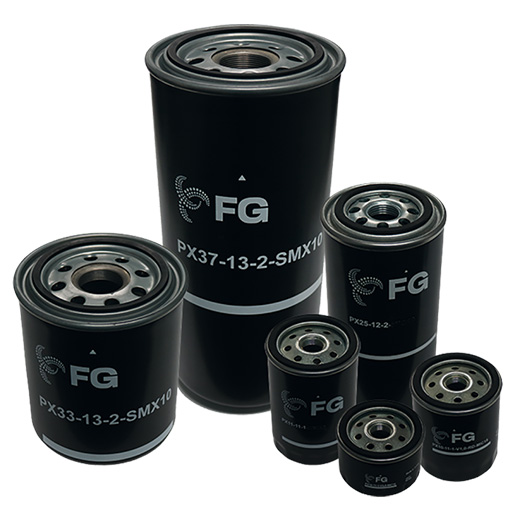

Filtration Group (formerly MAHLE) Spin-on cartridge HC 42 spin-on hydraulic filter / 7751372
Optimum filter selection thanks to modular system
Minimal pressure loss due to streamlined design of the components
High dirt holding capacity and differential pressure stability of the elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
Note:
The nominal size varies depending on the size of the filter housing for low-pressure / suction filter Pi 1941, see "Technical data for low-pressure filter / suction filter Pi 1941".
| Outer diameter (mm) | 93.5 |
| Outer seal diameter (mm) | 72 |
| Inner seal diameter (mm) | 62 |
| Filter fineness (micrometres) | 10 |
| Thread designation | 1-12UNF-2B |
| Nominal height (mm) | 210 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 10 |
| Filter material | Glass fiber |
