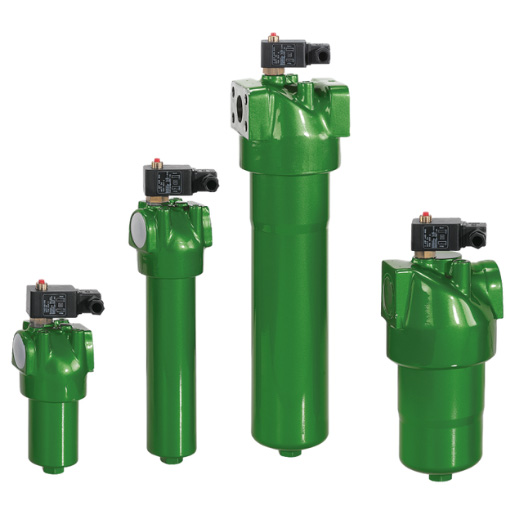

Filtration Group Medium pressure filter Pi 3615-060
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Medium pressure filter Pi 3615-6 / 77647845
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle medium pressure filter Pi 3615-6 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G1 1/4 |
| Operating temperature | -10°C bis +120°C |
| Max. Operating pressure (bar) | 210 |
| Nominal size | 150 |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
