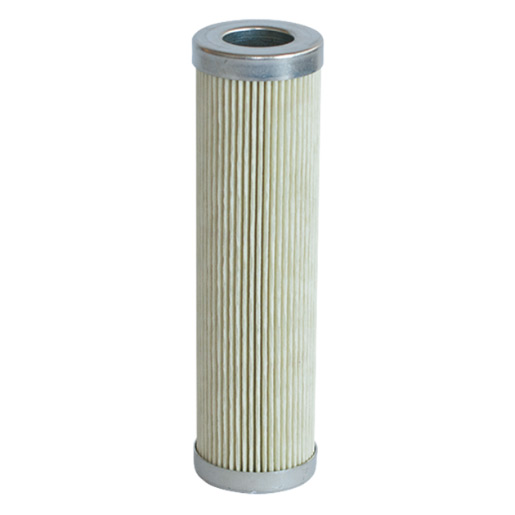

Filtration Group filter element PI 1008 MIC 25 / K197
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter element Pi 18 MIC 25 / 77657174
| Filter element | FG Standard |
| Nominal size (l/min) | 80 |
| Height (mm) | 171 |
| Outer diameter (mm) | 47 |
| Inner diameter (mm) | 25.5 |
| Mounting diameter (mm) | 25.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 25 |
| End disc material | Sheet metal end plate |
| Filter housing type | Pi 200 |
| Filter housing type | Pi 210 |
| Filter housing type | Pi 211 |
| Filter housing type | Pi 230 |
| Filter housing type | Pi 241 |
| Filter housing type | Pi 281 |
| Filter housing type | Pi 340 |
| Filter housing type | Pi 360 |
| Filter housing type | Pi 370 |
| Filter housing type | Pi 420 |
| Filter housing type | Pi 450 |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | Zellulose |
| Nominal height (mm) | 171 |
| Medium | Hydraulic oil |
| Nominal size | 80 |
