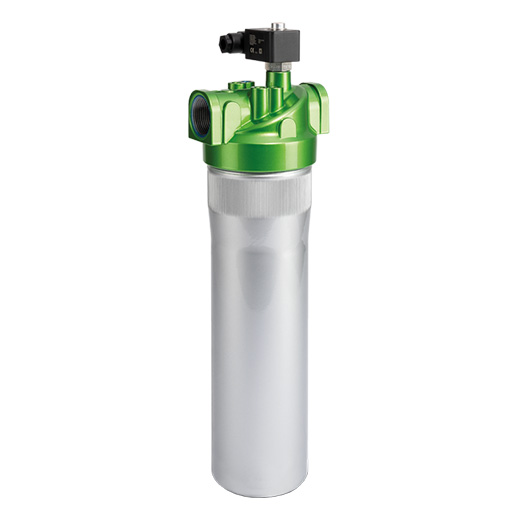

Filtration Group Low pressure filter PI 2045-057

667.59 € 667.59 EUR 667.59 € VAT Included

561.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77664865

Category :

Filtration Group Low Pressure Filter

Weight :

6.44 kg

Description
Specifications

Filtration Group (formerly MAHLE) Low pressure filter Pi 245-57 / 77664865

Intended for installation in pipes

Modular system for optimum filter selection

Low space requirement due to compact design

Minimal pressure loss due to streamlined design of the components

Version with threaded connections

Bypass

Visual maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High differential pressure stability and dirt holding capacity of the elements

Important note:
We supply the Mahle Pi 245-57 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1 1/4
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	mechanical
Operating temperature	-30°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	32
Nominal size	450
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	ALU

Filtration Group Low pressure filter PI 2045-057

Brand

Filtration Group (formerly MAHLE) Low pressure filter Pi 245-57 / 77664865
