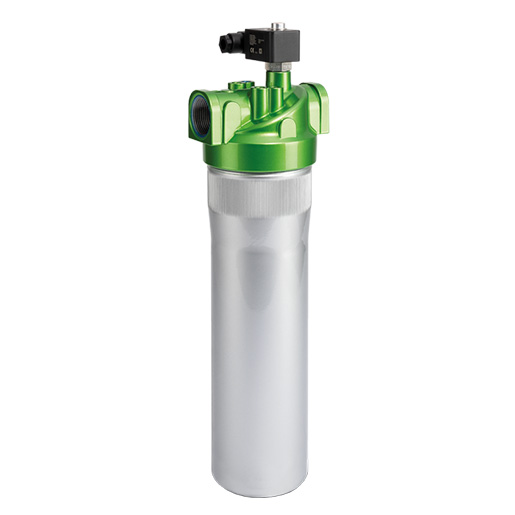

Filtration Group Low pressure filter Pi 2008-060
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low-pressure filter Pi 28-6 / 77665235
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded
This low-pressure filter can also be used as a Pi 2 suction filter, but with a nominal size of 16 l/min.
Matching filter elements: MA-7768341, MA-7768457 and mic-element MA-776885.
Important note:
We supply the Mahle Pi 28-6 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Operating temperature | -30°C bis +120°C |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 80 |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
