Filtration Group Low pressure filter Pi 2202-056

146.37 € 146.37 EUR 146.37 € VAT Included

123.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77665623

Category :

Filtration Group Low Pressure Filter

Weight :

0.40 kg

Description
Specifications

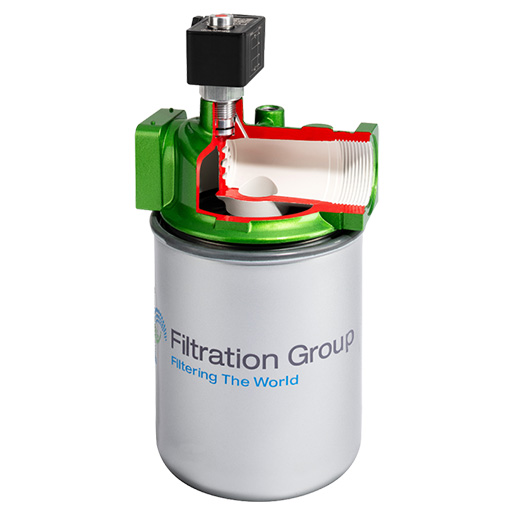

Filtration Group (formerly MAHLE) Low-pressure filter Pi 222-56 / 77665623

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Bypass

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Filtration Group (formerly MAHLE) low-pressure filter Pi 222-56 without the filter element.
For suitable filter elements, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1/2
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	10
Nominal size	25
Seal material	NBR
Filter head material	ALU

Filtration Group Low pressure filter Pi 2202-056

Brand

Filtration Group (formerly MAHLE) Low-pressure filter Pi 222-56 / 77665623
