Filtration Group Low pressure filter Pi 2203-068

236.81 € 236.81 EUR 236.81 € VAT Included

199.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77665748

Category :

Filtration Group Low Pressure Filter

Weight :

0.40 kg

Description
Specifications

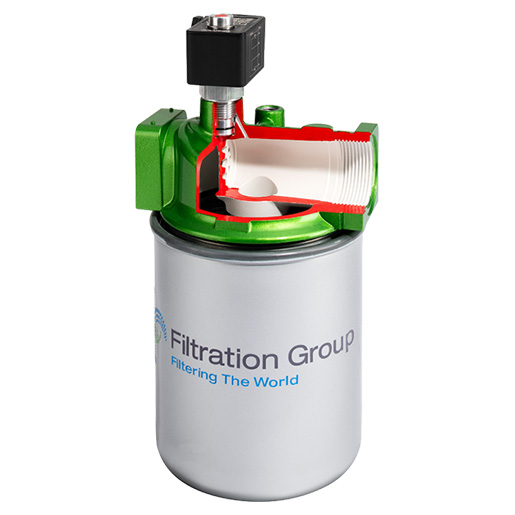

Filtration Group (formerly MAHLE) Low-pressure filter Pi 223-68 / 77665748

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Visual maintenance indicator

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

Important note:
We supply the Mahle low-pressure filter Pi 223-68 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1/2
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	mechanical
Operating temperature	-10°C bis +120°C
Max. Operating pressure (bar)	10
Nominal size	40
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter head material	ALU

Filtration Group Low pressure filter Pi 2203-068

Brand

Filtration Group (formerly MAHLE) Low-pressure filter Pi 223-68 / 77665748
