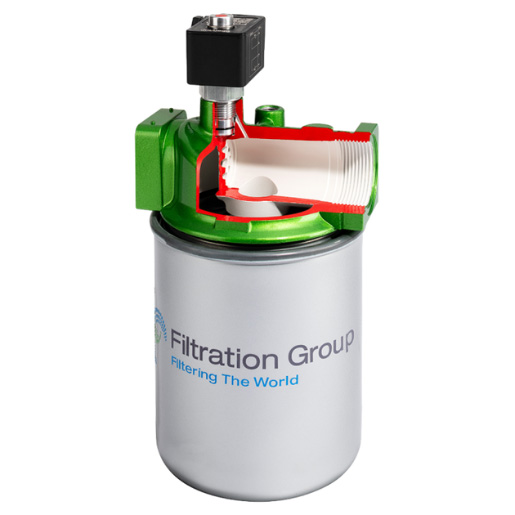

Filtration Group Low pressure filter Pi 2205-057

171.36 € 171.36 EUR 171.36 € VAT Included

144.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77665797

Category :

Filtration Group Low Pressure Filter

Weight :

0.35 kg

Filtration Group (formerly MAHLE) Low pressure filter Pi 225-57 / 77665797

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Bypass

Visual maintenance indicator

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 225-57 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 3/4
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	10
Nominal size	63
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter head material	ALU

FG-Datenblatt_Pi220_NG160_de-2

Download
