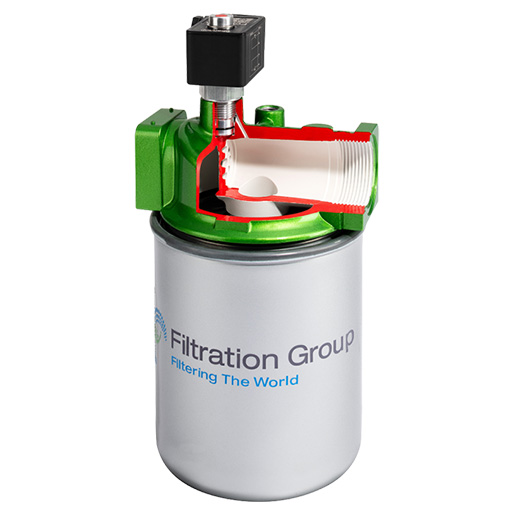

Filtration Group Low pressure filter PI 2205-060
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low pressure filter / suction filter Pi 225-6 / 77665813
This filter can be used both as a low-pressure filter and as a suction filter. Please note the different nominal sizes.
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded
Important note:
We supply the Mahle low pressure filter / suction filter Pi 225-6 without the filter element.
For suitable filter elements, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Operating temperature | -10°C bis +120°C |
| Max. Operating pressure (bar) | 10 |
| Nominal size | 63 |
| Seal material | NBR |
| Filter head material | ALU |
