Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77666233

Category :

Filtration Group Medium Pressure Filter

Weight :

4.25 kg

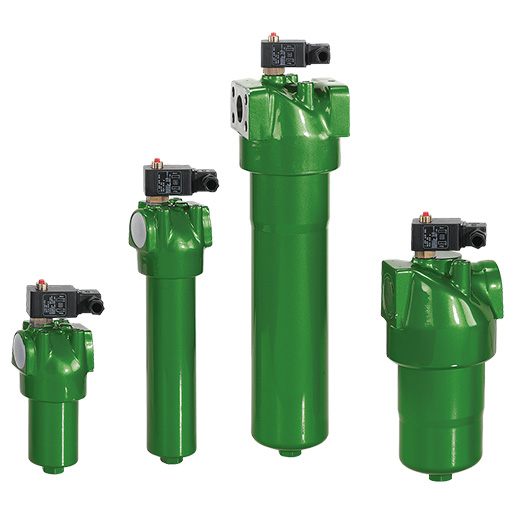

Filtration Group (formerly MAHLE) Medium pressure filter Pi 365-14 / 77666233

  • Intended for installation in pipes
  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Visual maintenance indicator
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.


    Important note:
    We supply the Mahle medium pressure filter Pi 365-14 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G1/2
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 315
    Nominal size 50
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
