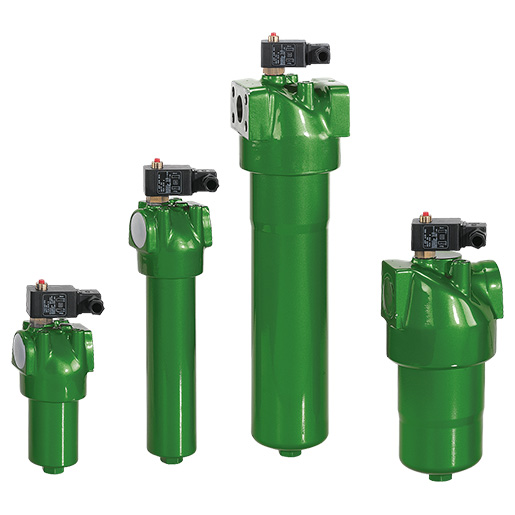

Filtration Group Medium pressure filter Pi 3608-012

Price:

448.63 €

English (US)
  2. Shop
  3. Filtration Group Medium Pressure Filter
  4. Filtration Group Medium pressure filter Pi 3608-012
Filtration Group Medium pressure filter Pi 30025-013
Filtration Group Medium pressure filter Pi 30025-013
809.20 € 809.20 €
Filtration Group Medium pressure filter Pi 3411-012
Filtration Group Medium pressure filter Pi 3411-012
489.09 € 489.09 €

Filtration Group Medium pressure filter Pi 3608-012

https://staging-filcom-16.laminfra.de/web/image/product.template/55782/image_1920?unique=d4441e6

448.63 € 448.63 EUR 448.63 € VAT Included

377.00 € VAT Included

(448.63 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77666266

Category :

Filtration Group Medium Pressure Filter

Weight :

5.05 kg

Filtration Group (formerly MAHLE) Medium pressure filter Pi 368-12 / 77666266

  • Intended for installation in pipes
  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Visual maintenance indicator
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium pressure filter Pi 368-12 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 3/4
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Bypass opening pressure (bar) 7
    Max. Operating pressure (bar) 315
    Nominal size 80
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
