Filtration Group High pressure filter Pi 4205-011

403.41 € 403.41 EUR 403.41 € VAT Included

339.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77666365

Category :

Filtration Group High Pressure Filter

Weight :

4.00 kg

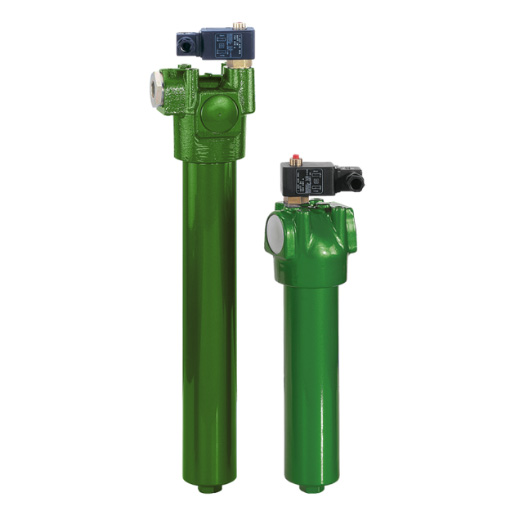

Filtration Group (formerly MAHLE) High-pressure filter Pi 425-11 / 77666365

Low space requirement due to compact design

Modular system for optimum filter selection

Thread design

Bypass

Hole for maintenance indicator

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 425-11 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Bypass opening pressure (bar)	7
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Connection type	Thread ISO 228
Nominal size	50
Filter head material	GGG
Connection size	G1/2
Seal material	NBR
Max. Operating pressure (bar)	400

FG-Datenblatt_Pi420_NG450_de

Download
