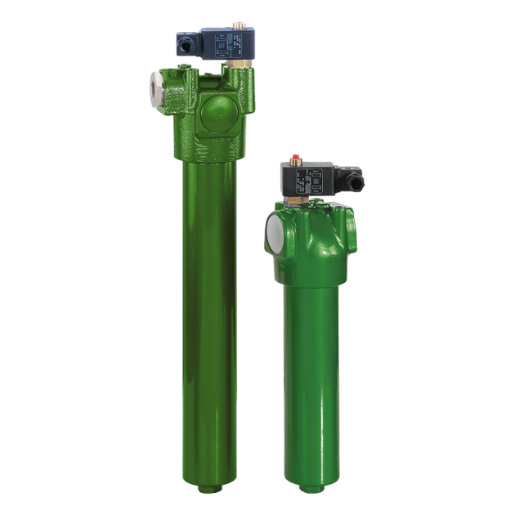

Filtration Group High pressure Pi 4208-012
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) High-pressure filter Pi 428-12 / 77666449
Important note:
We supply the Mahle Pi 428-12 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Bypass opening pressure (bar) | 7 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | mechanical |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Filter housing material | Steel |
| Operating temperature | -10°C bis +120°C |
| Connection type | Thread ISO 228 |
| Nominal size | 80 |
| Filter head material | GGG |
| Connection size | G 1 |
| Seal material | NBR |
| Max. Operating pressure (bar) | 400 |
