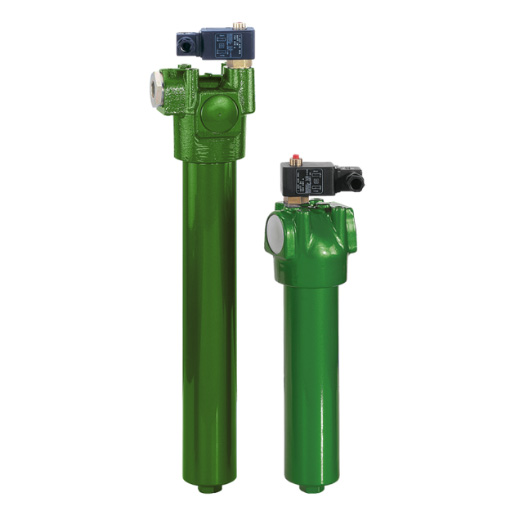

Filtration Group High pressure filter Pi 4230-012
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) High-pressure filter Pi 423-12 / 77666639
Low space requirement due to compact design
Modular system for optimum filter selection
Thread design
Bypass
Visual maintenance indicator
Minimal pressure loss due to streamlined design of the components
Available with high-efficiency PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High dirt holding capacity and differential pressure stability of the elements
Important note:
We supply the Mahle Pi 423-12 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Bypass opening pressure (bar) | 7 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | mechanical |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Filter housing material | Steel |
| Operating temperature | -10°C bis +120°C |
| Connection type | Thread ISO 228 |
| Nominal size | 300 |
| Filter head material | GGG |
| Connection size | G1 1/4 |
| Seal material | NBR |
| Max. Operating pressure (bar) | 400 |
