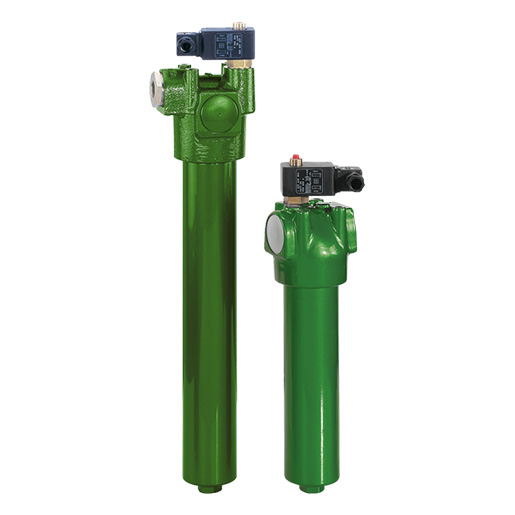

Filtration Group High pressure filter housing PI 4245-012

1,011.50 € 1011.5 EUR 1,011.50 € VAT Included

850.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77666704

Category :

Filtration Group High Pressure Filter

Weight :

17.25 kg

Description
Specifications

Filtration Group (formerly MAHLE) High pressure filter Pi 4245-12 / 7766674

Low space requirement due to compact design

Modular system for optimum filter selection

Thread design

Bypass

Visual maintenance indicator

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 4245-12 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Bypass opening pressure (bar)	7
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	mechanical
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Connection type	Thread ISO 228
Nominal size	450
Filter head material	GGG
Connection size	G 1 1/2
Seal material	NBR
Max. Operating pressure (bar)	400
